Bom India Forge and Fittings is a leading stockist and supplier of premium quality Pipe Fittings. Engineered to ensure leak-proof connections, smooth flow transitions, and structural reliability, our fittings are vital components for complex piping systems in the oil & gas, petrochemical, power generation, and marine industries. We maintain a comprehensive inventory of Buttweld, Forged (Socket Weld & Threaded), and Instrumentation fittings in a wide range of dimensions and pressure ratings to meet the precise requirements of your critical projects.
| Specification | Details |
|---|---|
| Fitting Categories | Buttweld Fittings, Forged Fittings (Socket Weld & Threaded), Tube Fittings |
| Size Range (Buttweld) | 1/8" NB to 48" NB (Available in Seamless & Welded construction) |
| Size Range (Forged) | 1/8" NB to 4" NB |
| Pressure Ratings (Forged) | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Wall Thickness / Schedule | SCH 5, SCH 10, SCH 40, SCH 80, SCH 160, XXS (For Buttweld) |
| Key Products (Buttweld) | Elbows (45°, 90°, 180°), Tees (Equal & Reducing), Reducers (Concentric & Eccentric), Stub Ends, Caps, Crosses |
| Key Products (Forged) | Couplings (Half & Full), Unions, Nipples, Bushings, Plugs, Weldolets, Threadolets |
| Manufacturing Standards | ASME / ANSI B16.9, B16.28, B16.11, MSS-SP-43, MSS-SP-83, MSS-SP-97 |
| End Connections | Beveled End (BW), Threaded (NPT, BSP, BSPT), Socket Weld (SW) |
We supply Pipe Fittings across a wide spectrum of premium alloys to ensure perfect compatibility with your piping systems.
| Material | Grades | Standard (ASTM / ASME) |
|---|---|---|
| Stainless Steel | 304/304L, 316/316L, 310S, 317L, 321, 347, 904L | A403 (BW) / A182 (Forged) |
| Duplex & Super Duplex | UNS S31803, S32205, S32750, S32760 | A815 (BW) / A182 (Forged) |
| Titanium | Grade 2, Grade 5, Grade 7 | B363 (BW) / B381 (Forged) |
| Inconel / Incoloy | 600, 601, 625, 718, 800, 800H, 825 | B366 (BW) / B564 (Forged) |
| Monel | Monel 400, Monel K500 | B366 (BW) / B564 (Forged) |
| Hastelloy | C276, C22, B2, B3 | B366 (BW) / B564 (Forged) |

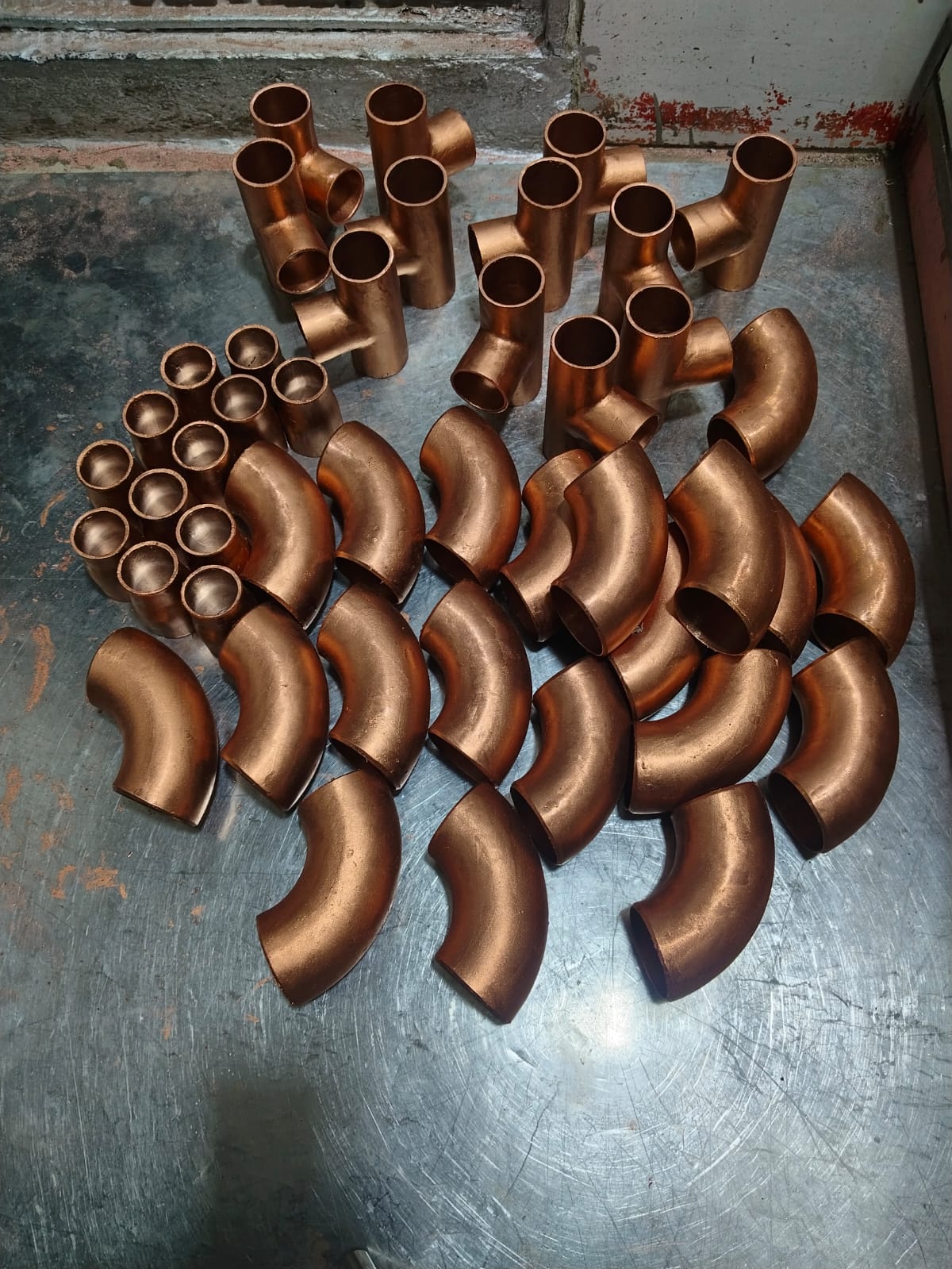

| Copper & Brass | Electrolytic Copper, Commercial Brass, Aluminum Brass | B152, B283 |

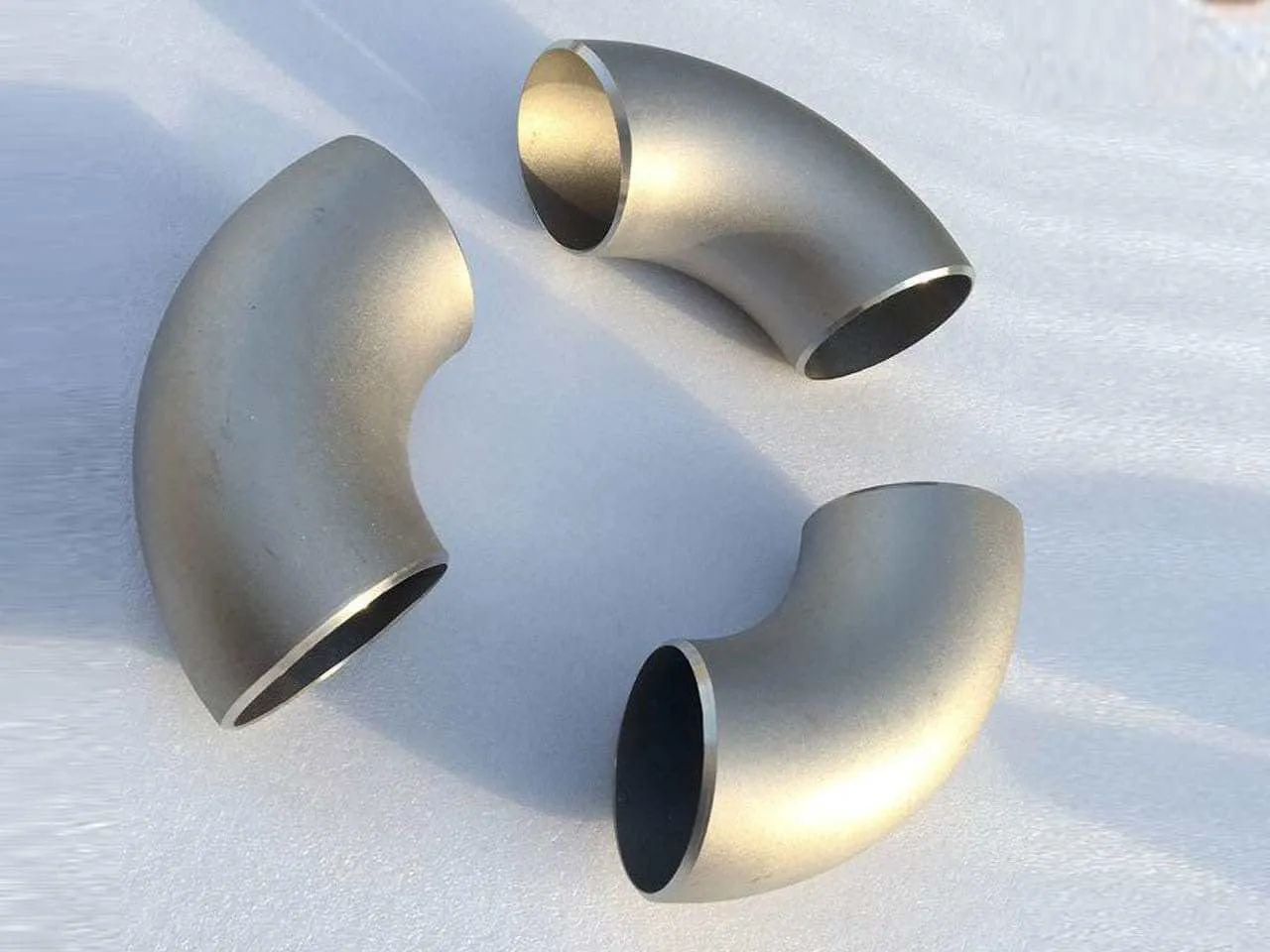

Designed to change the direction of flow in a piping system. Available in Long Radius (LR) and Short Radius (SR), these fittings are beveled for smooth welding and minimal turbulence.

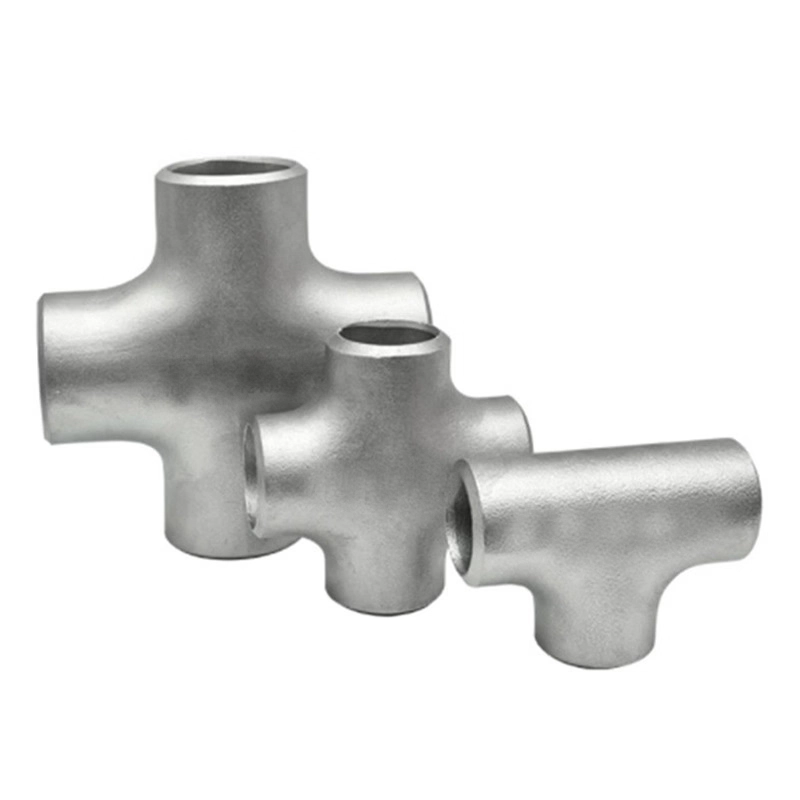

Used to combine or divide fluid flow. Equal tees maintain the same pipe diameter, while reducing tees allow connection to a smaller pipe branch without additional adapters.

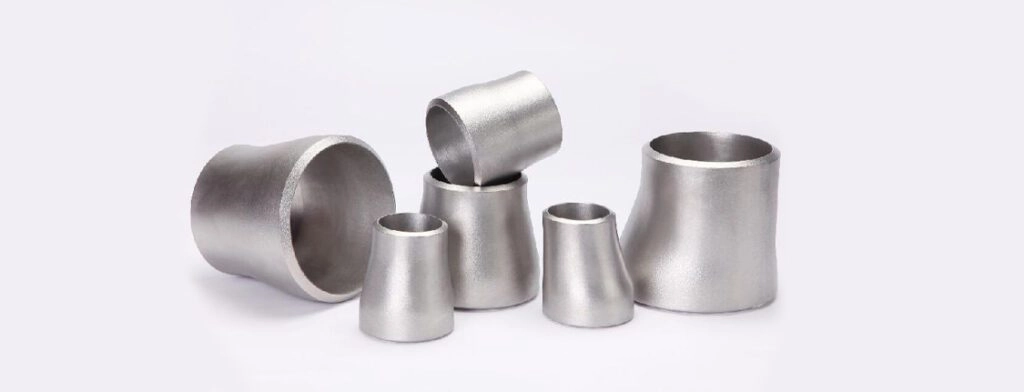

Essential for transitioning between different pipe sizes. Concentric reducers align the centerlines (ideal for vertical lines), while eccentric reducers keep the bottom flat (preventing pooling in horizontal lines).

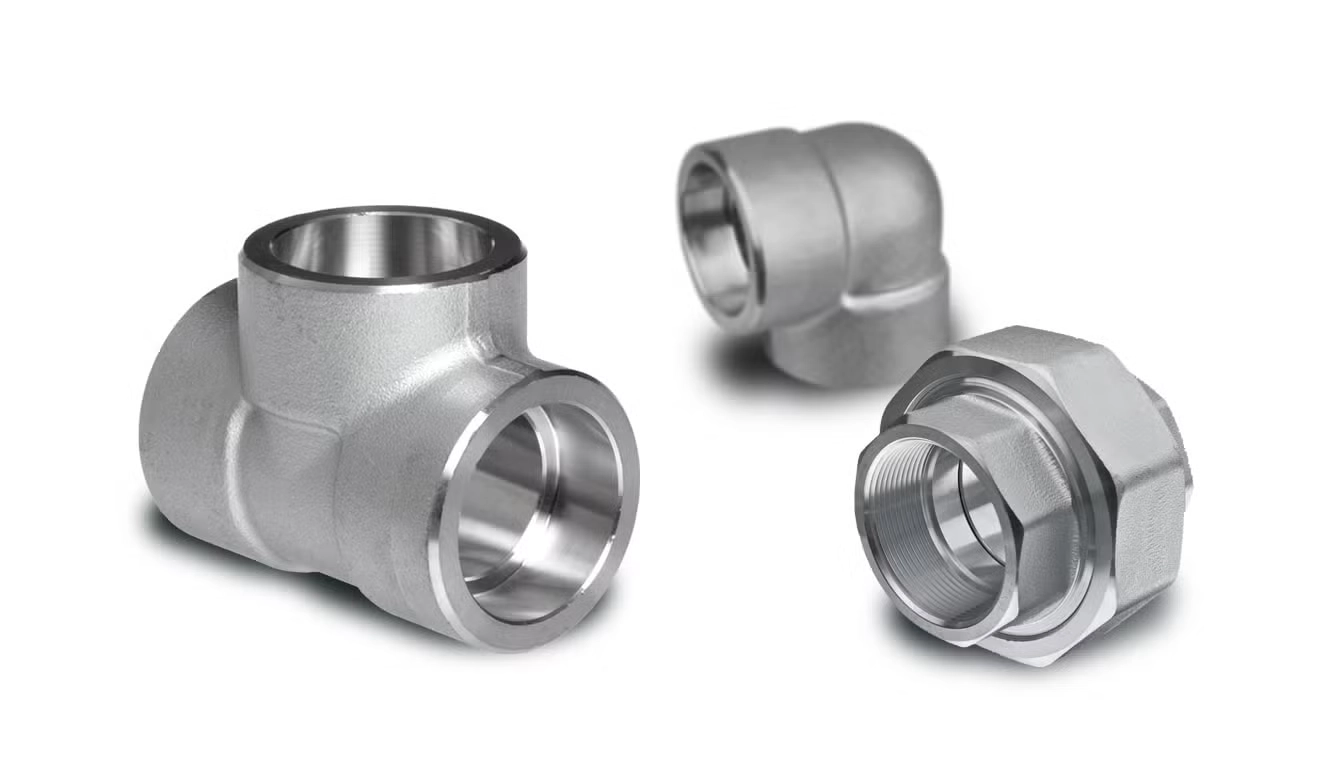

High-pressure, heavy-duty fittings machined from solid forgings. Available as Socket Weld (for permanent welding) or Threaded (NPT/BSP) for systems requiring frequent maintenance.

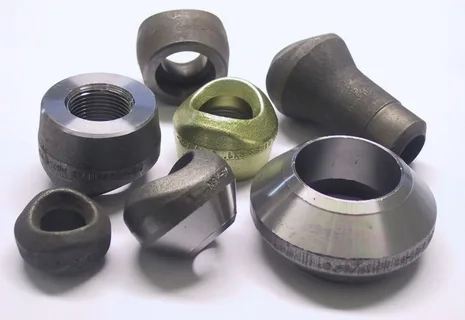

Includes Weldolets, Threadolets, and Sockolets. These fittings provide a highly reinforced branch connection directly from the main run pipe, eliminating the need for a standard tee.
Precision-engineered inner curves (especially in long radius elbows) to minimize pressure drop and fluid turbulence.
Perfectly beveled ends for deep weld penetration and precision-machined NPT/BSP threads ensure zero leakage under extreme pressure.
Our forged fittings (up to 9000#) are manufactured from solid metal blocks, offering unparalleled resistance to mechanical shocks.
Fully backed by Mill Test Certificates (MTC) and Heat Numbers stamped directly on the fitting for complete material transparency.
Contact Bom India Forge and Fittings for competitive pricing, technical data sheets, and immediate stock availability.
